LCJ Capteurs CV7-BARO3 Standard NMEA0183 Ultralyd vindsensor med Barometer m. 25m kabel (Ray, B&G)

CV7-BARO kombinerer CV7-Ultralyd vindsensor til sejlbåde og en 12VDC koblingsboks med et elektronisk barometer integreret med NMEA0183 output.

OVERVIEW

The CV7-Baro3 is an ultrasonic wind speed indicator-anemometer combined with a barometer.

This sensor is adapted to sailboats’ specific constraints thanks to its oblique arm that leaves the masthead free. It is combined with a 12 VDC junction box with barometer, which enables the atmospheric pressure do be added to the NMEA0183 data provided by the CV7.

SPECIFICATIONS

CV7:

Cabling:
4 wires:
– Red: +12 VDC (9-16 VDC, 9mA)
– Blue: 0V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –

Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: – 15°C (without icing) to +55°C

Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: +/-1°
Air temperature: +/- 1°C

NMEA0183® sentences:
IIMWV: Angle, Wind speed and Measurement validity
WIXDR: Air temperature
WIMDA: Atmospheric pressure
PLCJ: manufacturer’s data
PLCJE: manufacturer’s data
Transmission speed: 4800 Bd

Complies with the European CE standard

BARO junction box:
Dimensions: 68 x 58 x 22 mm
Power supply: + 12 VDC

COMPATIBILITY

NMEA0183® – 4800 Bd

FURUNO©, RD30, RD33, depth sounders, radars, NavNet, NavNet2, NavNet3…
GARMIN©, and all devices equipped with a “wind” window and an NMEA0183® input port
Navigation software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Seapro, Sodena, StatMETEO

DELIVERY CONTENTS

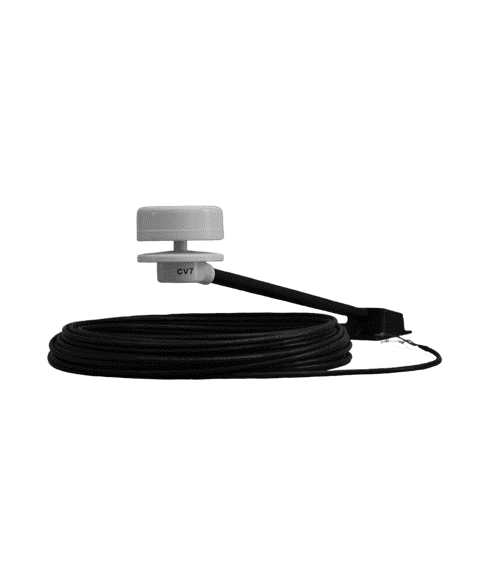

– CV7 sensor with a 310 mm slanted arm
– Mounting Bracket
– Cable (25 m) 4 X 0.22 mm²
– 12 VDC junction box with integrated barometer
– User and installation manual
– 2–year warranty, parts and labour in our premises
