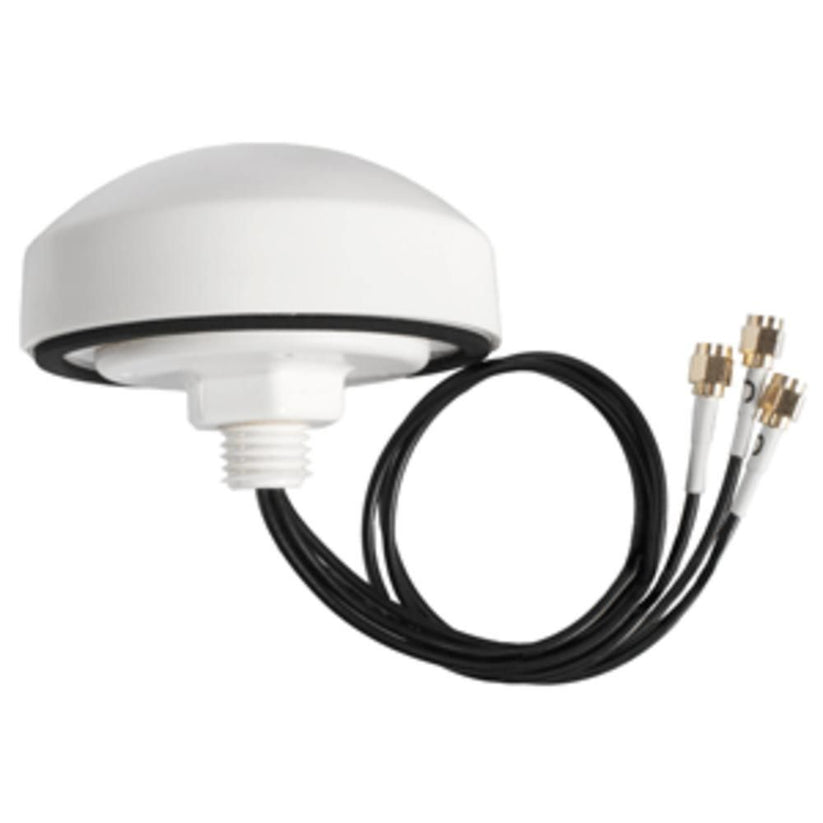

Shakespeare JF-3 Classic Multi-Band Antenne GPS-Mobil-Wi-Fi 4x10,2 cm

Specifikationer:

WiFi Specifikationer:

• Frequency band:

• 2.4~2.5GHz

• 5~5.4GHzHz

• 5.4~5.9GHzHz

• Average peak gain:

• 4.8dBi

• 6.9dBi

• 7.7dBi

• Average efficiency:

• 73%

• 65%

• 70%

• VSWR Max:

• 3.0:1

• 3.0:1

• 3.0:1

• Impedance:

• 50 ohm

• Pattern type/ polarization:

• Omni-directional/ linear

• Power handling:

• 25 watt

• Connector:

• R/P SMA Male

GPS Specifikationer:

• Frequency band:

• 1575.42 ± 2MHz

• VSWR:

• 1.5 Max

• Bandwidth:

• 20MHz Min. at -10dB

• Axial ratio / Polarization:

• 3dB Max. on a 70mm x 70mm ground plane / Right hand

• Peak Gain:

• 4dBic Min. at 0° on a 70mm x 70mm ground plane

• Gain & radiation coverage:

• ≥-4dBic at -90°≤Ø≤90° (over 75% volume)

• Connector:

• BNC Male

Amplifier Module

• Gain:

• 27dB Typical

• Noise figure:

• 2.5dB Max.

• LOW voltage operation:

• 2.7-6.0Vdc

• Impedance:

• 50 OHMS

• VSWR:

• 2:1 Max.

• Brand rejection:

• -35dB@±100MHz

• Power handling:

• 1W Max.

• Current:

• 10±3mA

Mobil Specifikationer:

• Frequency band:

• LTE 696~800MHz

• AMPS/GSM 824~960MHz

• DCS/PCS 1710~1990MHz

• WCDMA 1920~2170MHz, 2600 MHz

• Average peak gain:

• 2.6dBi

• -0.1dBi

• 6.7dBi

• 6.8dBi

• Average efficiency:

• 64%

• 39%

• 78%

• 80%

• VSWR Max:

• 3.0:1

• 3.0:1

• 3.0:1

• 2.0:1

• Impedance:

• 50Ω

• Pattern type/ polarization:

• Omni-directional/ linear

• Power handling:

• 25 watt

• Connector:

• FME Female
